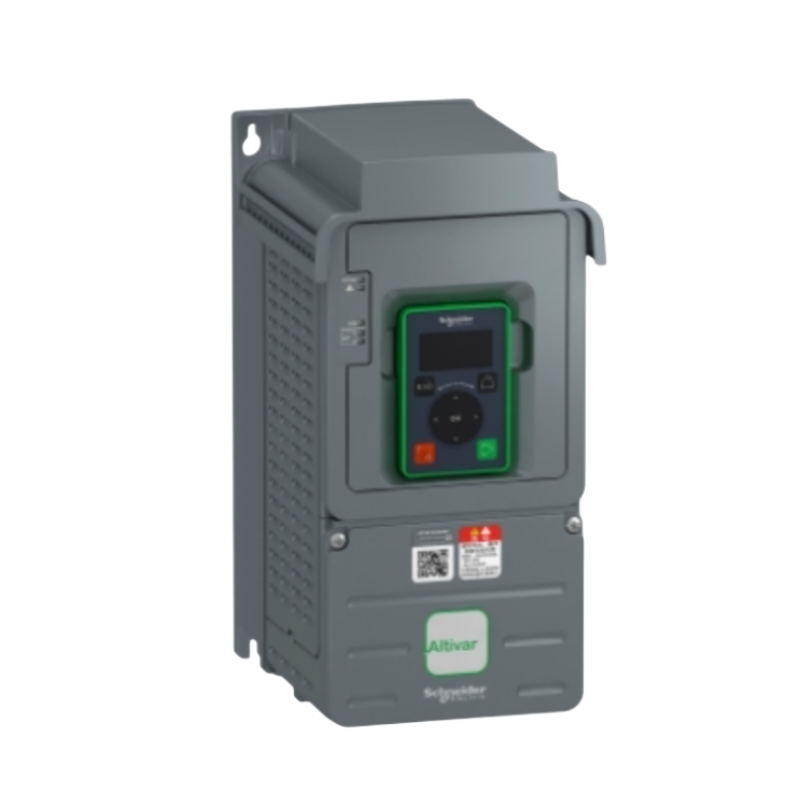

Schneider ATV610U30N4 Variable Speed Drives

Used

Warranty: 3 months

Module Number: ATV610U30N4

Product Description

This Easy Altivar 610 drive is a frequency inverter for three-phase asynchronous motors. It works at a rated supply voltage from 380V to 415V AC. It is suitable for motors with power rating up to 3kW for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 2.2kW /3hp for applications requiring significant overload (up to 150%). It offers a plug & play solution, whereby parameters are preset in the factory to the desired configuration, to help save process control and operating time. It has integrated radio interference input filters in accordance with the EMC standard for variable speed electrical power drive “products” IEC/EN 61800-3, edition 2, category C3 in environment 1 or 2. It weighs 2.4kg and its dimensions are, 145mm wide, 297mm high, 203mm deep. this drive has been specially designed for standard applications in the market segments water and wastewater and oil and gas and in the domains process and machine management and building management.

• Range of product: Easy Altivar 610
• Product or component type: Variable speed drive
• Product specific application: Fan, pump, compressor, conveyor
• Device short name: ATV610
• Variant: Standard version
• Product destination: Asynchronous motors
• Mounting mode: Cabinet mount
• EMC filter: Integrated conforming to EN/IEC 61800-3 category C3 with 50 m
• IP degree of protection: IP20
• Type of cooling: Forced convection
• Supply frequency: 50...60 Hz +/-5 %
• Network number of phases: 3 phases
• [Us] rated supply voltage: 380...460 V - 15...10 %
• Motor power kW: 3kW for normal duty / 2.2 kW for heavy duty
• Motor power hp: 3 hp for heavy duty
• Line current
• 10.1 A at 380 V (normal duty)
• 8.4 A at 460 V (normal duty)
• 7.6 A at 380 V (heavy duty)
• 6.4 A at 460 V (heavy duty)
• Prospective line Isc: 5 kA
• Apparent power
• 6.7 kVA at 460 V (normal duty)
• 5.1 kVA at 460 V (heavy duty)
• Continuous output current
• 7.2 A at 4 kHz for normal duty
• 5.6 A at 4 kHz for heavy duty
• Maximum transient current
• 7.9 A during 60 s (normal duty)
• 8.4 A during 60 s (heavy duty)
• Asynchronous motor control profile
• Constant torque standard
• Variable torque standard
• Optimized torque mode
• Output frequency: 0.0001…0.5 kHz
• Nominal switching frequency: 4 kHz
• Switching frequency: 2...12 kHz adjustable
• number of preset speeds: 16 preset speeds
• Communication port protocol: Modbus serial
• Option card
• Slot A: communication card, Profibus DP V1
• Slot A: digital or analog I/O extension card
• Slot A: relay output card
