WOODWARD

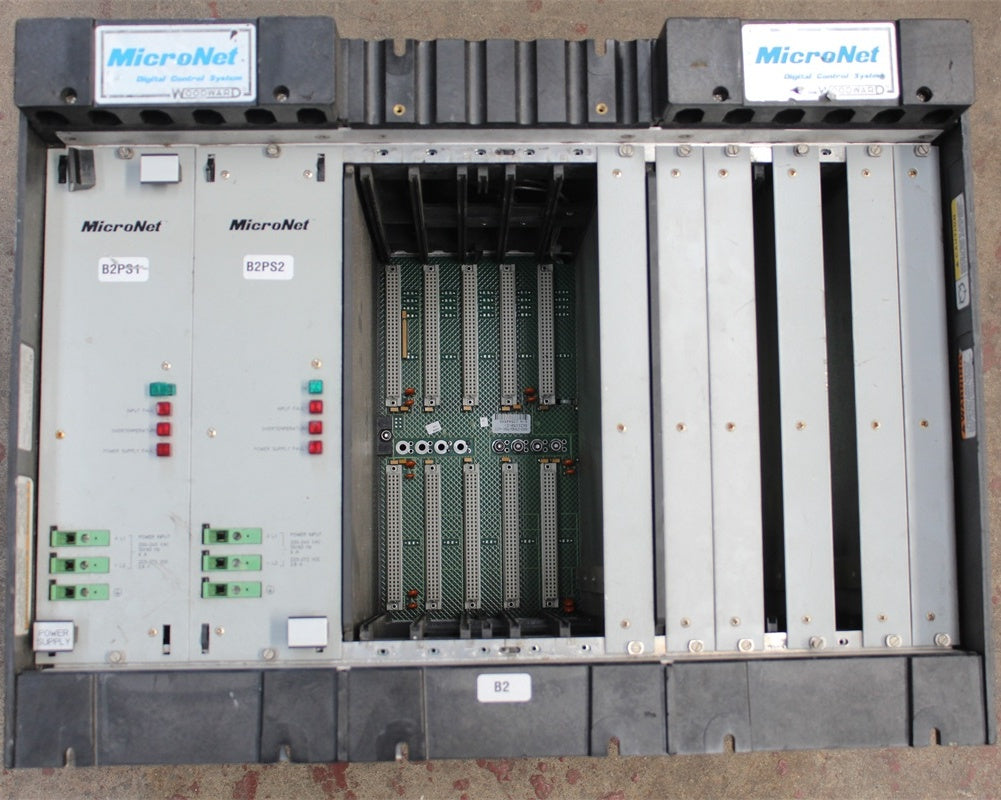

WOODWARD 5453-278 MICRONET 12 SLOT CHASSIS

WOODWARD 5453-278 MICRONET 12 SLOT CHASSIS

Regular price $3,800.00
Regular price $4,500.00 Sale price $3,800.00
Sale Sold out

Used

Warranty: 3 months

Module Number: 5453-278

    Contact E-mail: jason520886@gmail.com

    Product Description:
    5453-278 is a MicroNet 12 Slot Chassis developed by Woodward. There are twelve slots in this chassis for remote transceiver and I/O (input/output) modules. This allows for one Remove XCVR or RTN module and eleven I/O modules, but no redundant RTN modules. In addition to the 12 XCVR/RTN-I/O slots, there are two power supply positions, allowing for redundant power input. Each power supply module occupies three slots of chassis space. When power supply and I/O slots are counted, the chassis has a total width of 18 slots. To maintain proper cooling flow through the chassis, if a power supply or I/O module slot is not occupied, it must be filled with a blanking plate. New applications should not be developed using the 12 slot expansion chassis. Only in retrofit situations where the chassis is already installed should the 12 slot expansion chassis be used.

    Features
    The MicroNet is built around a six-slot modular chassis (block). Each block is made up of a premolded cage with a fan for cooling and a temperature switch for detecting high temperatures.
    The chassis are cooled by forced air, and to maintain proper air flow, a module or a module blank must be installed in each slot. When power is applied to the system, the fans start up. The twelve-slot MicroNet expansion chassis is made up of three blocks, with a motherboard inserted in the back to connect the fans, switches, power supplies, and control modules.
    For connector specification and data transfer, the modules employ the VERSAmodule Eurocard (VME) bus standard. An etched-circuit motherboard connects the logic and power slots to one another.
    I/O connections are made by running cables from the front of the modules to the cabinet's field termination modules (FTMs). Any I/O module can be installed in any of the slots designated for I/O modules from a module connector standpoint. However, when the application software is designed, each module is assigned to a specific slot, and the software then expects that specific I/O module to be in its designated slot at all times.
