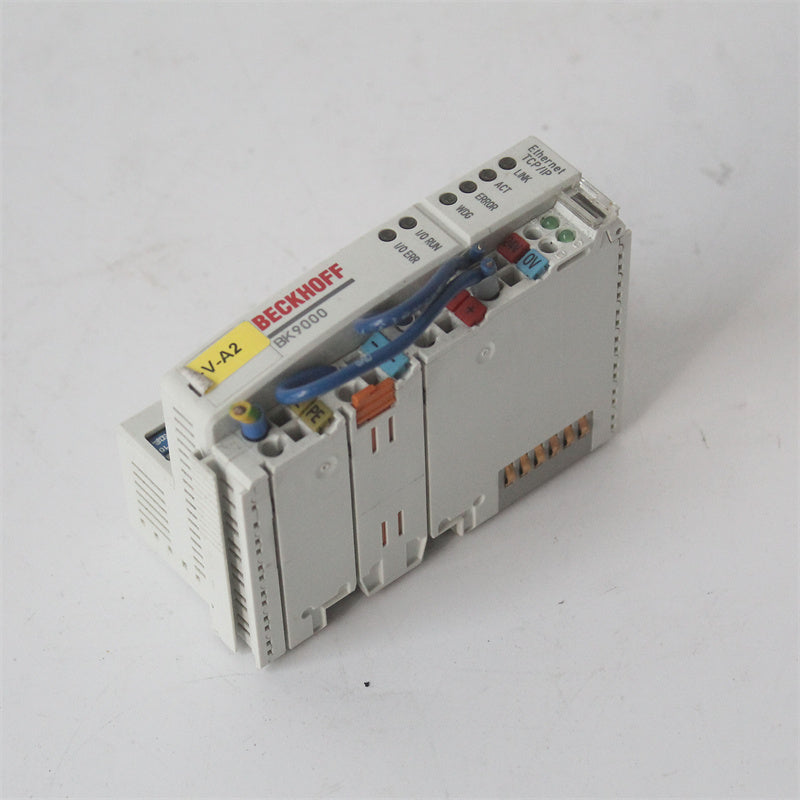

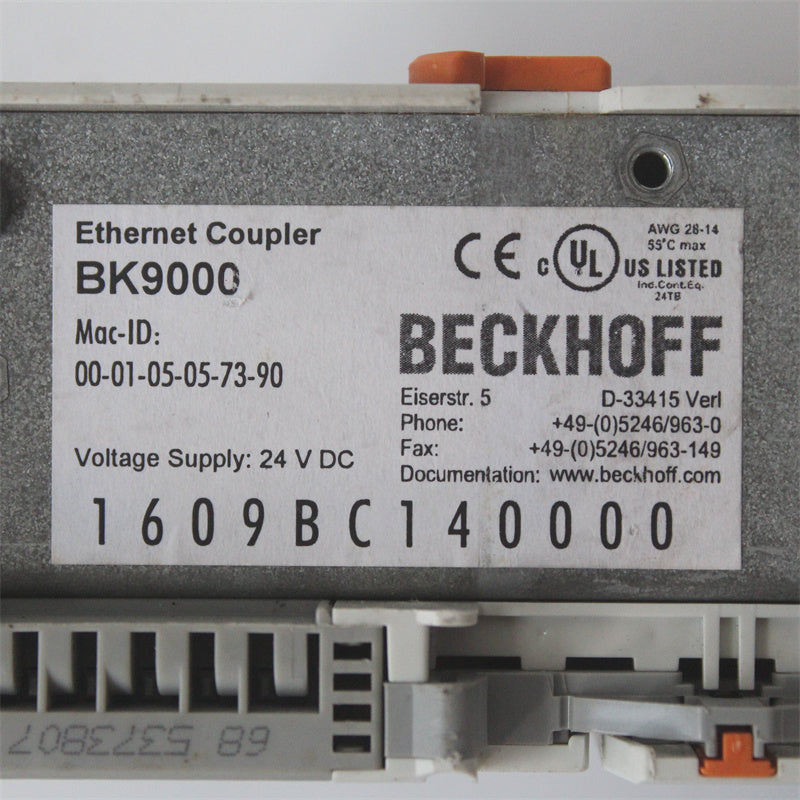

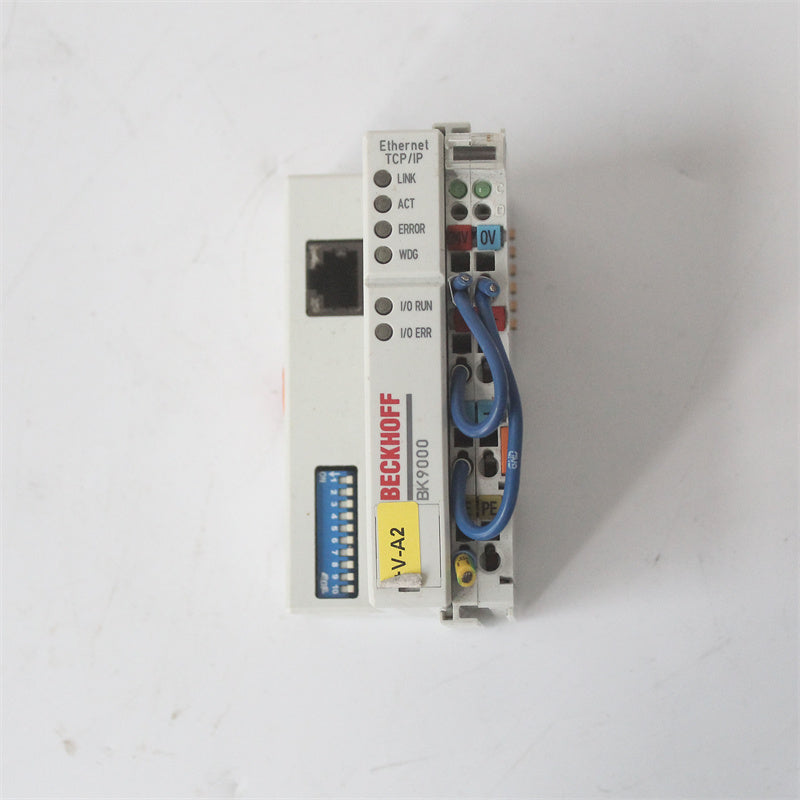

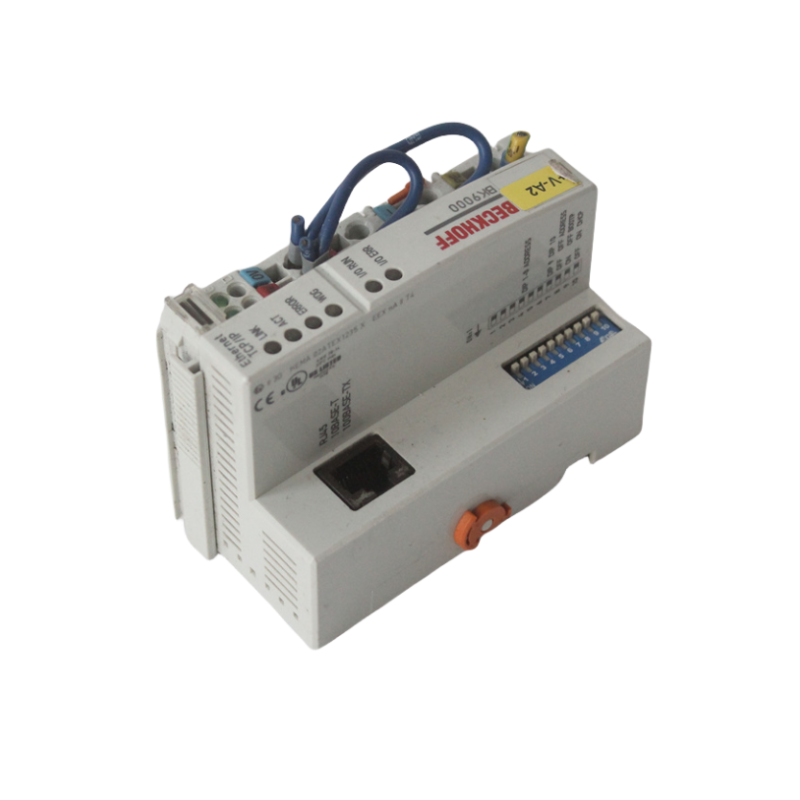

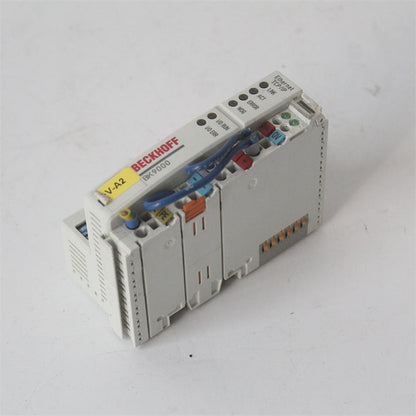

Beckhoff BK9000 Ethernet TCP/IP Bus Coupler

Used

Warranty: 3 months

Module Number: BK9000

Product Description

The BK9000 Bus Coupler connects Ethernet with the modular, extendable electronic terminal blocks. One unit consists of one Bus Coupler, any number from 1 to 64 terminals and one end terminal.

The Bus Coupler recognizes the terminals to which they are connected, and performs the assignment of the inputs and outputs to the words of the process image automatically. The BK9000 supports 10 Mbit/s and 100 Mbit/s Ethernet. Connection is through normal RJ45 connectors. The IP address is set on the DIP switch (offset to a freely selectable start address). In networks with DHCP (a service for the allocation of the logical IP address to the physical node address [MAC-ID]) the Bus Coupler obtains its IP address from the DHCP server.

The Bus Coupler supports ADS TwinCAT system communication. TwinCAT I/O makes available configuration tools and Windows NT/2000/XP drivers for programs in any desired high-level language (DLLs) and for Visual Basic applications (ActiveX). Applications with OPC interfaces can access ADS (and therefore the BK9000) via an OPC server. In addition to ADS the Bus Coupler supports Open Modbus (Modbus TCP), a simple, widespread master/slave protocol based on TCP/IP.

Special Features:

• ground switching
• no bouncing due to mechanical switches thanks to 3 ms input filter
• tool-free connection by direct plug-in technology for solid wire conductors
• space-saving use in the control cabinet
• direct connection of multi-channel sensors in 1-wire connection technology in the smallest space

System Data

• Number of I/O stations: only limited by IP addresses
• Number of I/O points: depending on controller
• Data transfer medium: 4 x 2 twisted pair copper cable; category 3 (10 Mbit/s), category 5 (100 Mbit/s)
• Distance between stations: 100 m between hub/switch and Bus Coupler
• Data transfer rates: 100 Mbit/s
• Topology: star wiring

• Number of Bus Terminals: 64
• Max. number of bytes fieldbus: 512 byte input and 512 byte output
• Digital peripheral signals: 512 inputs/outputs
• Analog peripheral signals: 128 inputs/outputs
• Protocol: TwinCAT ADS, Modbus TCP, Beckhoff real-time Ethernet
• Configuration possibility: via KS2000
• Data transfer rates: 10/100 Mbit/s, automatic recognition of the transmission rate
• Bus interface: 1 x RJ45
• Power supply: 24 V DC (-15 %/+20 %)
• Input current: 70 mA + (total K-bus current)/4, 500 mA max.
• Starting current: 2.5 x continuous current
• Recommended fuse: ≤ 10 A
• Current supply K-bus: 1750 mA
• Power contacts: max. 24 V DC/max. 10 A
• Electrical isolation: 500 V (power contact/supply voltage/fieldbus)
• Operating/storage temperature: -25…+60 °C/-40…+85 °C
• Relative humidity: 95 %, no condensation
• Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
• EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
• Protect. rating/installation pos.: IP20/variable
