YASKAWA

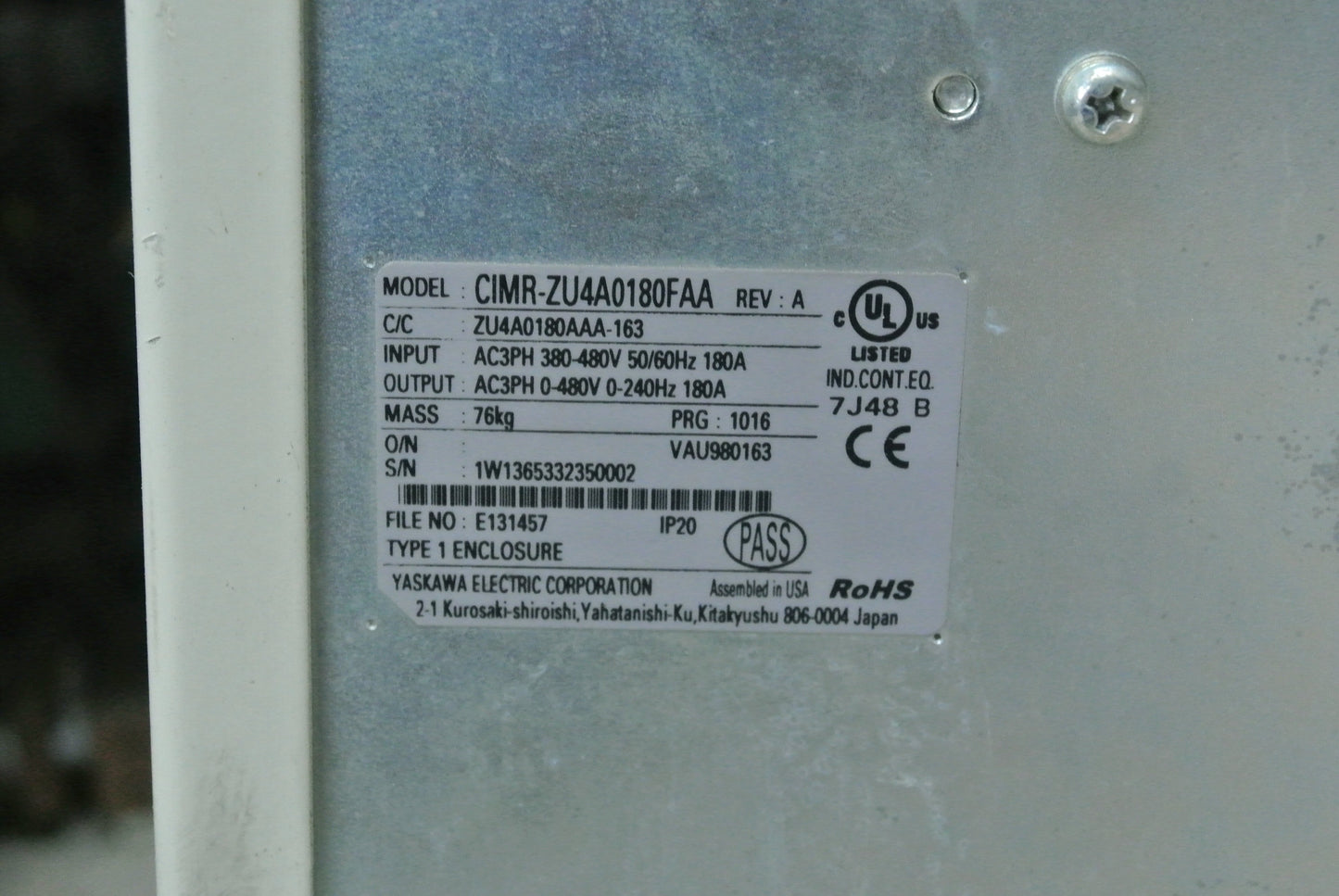

YASKAWA CIMR-ZU4A0180FAA Inverter Input 380-480V

YASKAWA CIMR-ZU4A0180FAA Inverter Input 380-480V

常规价格 $3,600.00
常规价格 $4,200.00 促销价 $3,600.00
促销 售罄

Used

Warranty: 3 months

Module Number: CIMR-ZU4A0180FAA

Product Description

  • Type: HVAC Drives
  • Input Voltage: 480 V
  • Power Rating: 150 hp / 111.9 kW
  • Ambient Operating Temperature: -10 to 40'C / 14 to 104'F
  • Output Frequency: 0.01 to 240 Hz
  • Digital Input: 0.01 to 240 Hz
  • Digital Input: Multi-Function Programmable Digital Inputs (24Vdc): 7
  • Analog Input: Multi-Function Programmable Analog Inputs (0-10VDC or 4-20mA): 2
  • Relay Output: Fault Relay Output (Form C - 2 Amps at 250Vac max): 1, Multi-Function Programmable Relay Output (Form A - 2 Amps at 250Vac max): 3
  • Analog Output: Multi-Function Programmable Analog Outputs (0-10Vdc or 4-20mA): 2
  • Network Communications: Built-in BACnet, RS485/422 - Programmable up to 76.8 kbps
  • Optional: LonWorks, Metasys / APOGEE FLN
  • Motor Construction: Squirrel Cage Induction, Interior Permanent Magnet
  • Drive Center to Top: 15.26 in
  • Overload Capacity: 110% for 60 seconds, 175% instantaneous
  • Control Methods: Open Loop Vector Control for Permanent Magnet motors
  • V/Hz Control
  • Enclosures: NEMA Type 1 / IP20 : 3 - 100 HP 208V and 3 - 250 HP 480V
  • Open Type / IP00 : 125 - 150 HP 208V and 300 - 500 HP 480V
  • Standard I/O: 24 Vdc, 150 mA Transducer or Transmitter Power Supply for customer use: 1
  • Harmonic Mitigation: Built-in 5% line impedance for input harmonic reduction.
  • Noise Filter: On board EMI/RFI filter complies with IEC 61800-3 restricted distribution for first environment.
  • Serial Communications: Embedded BACnet communications (BTL Certified), along with Modbus/Memobus, Metasys and Apogee FLN.
  • Ratings: Plenum Rated (UL 1995). Seismic Rated (IBC 2006 - Certification 12/2011). Made with RoHS compliant materials.
  • Internal Real-Time Clock: Time and date stamping for events, along with timer controls for starting stopping and speed changes without the need for external controls.
  • PI Feature: Maintains a set point for closed loop control of fans and pumps for pressure, flow or temperature regulation and eliminates the need for a closed loop output signal from a BAS. Independent PI to control an external device in the system.
  • LCD Operator: 5-Line 16 character alpha-numeric, easy to read and understand display, with Hand-Off-Auto functions.
  • Carrier Frequency: 5 kHz carrier frequency with dynamic noise control for quiet motor operation.
  • Application Macros: Choose from pre-configured set up macros to match the application for quick and easy set up.
  • Sealed Heatsink: Allows for drive to be mounted in a NEMA 12 enclosure with heatsink external.
